    BELL

While small in size, Bell is big on versatility, character, and light. A great solo player, as well as perfect in clusters.

FEATURES

  • Materials that ring true

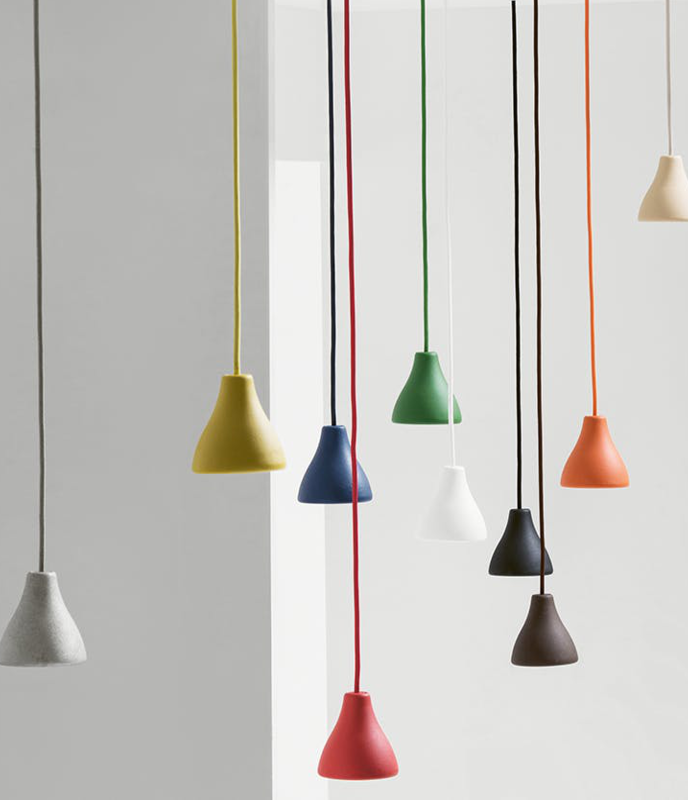

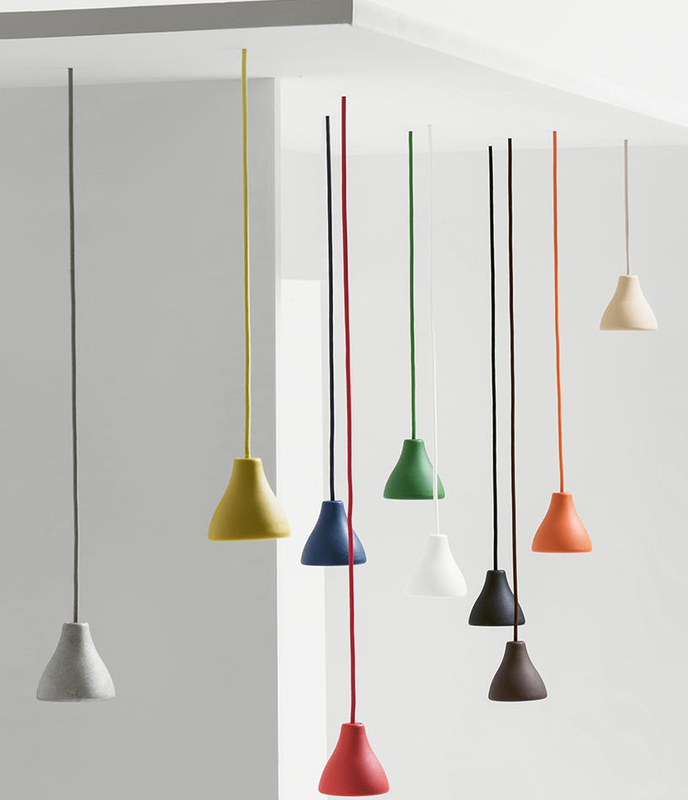

  • Ten colours

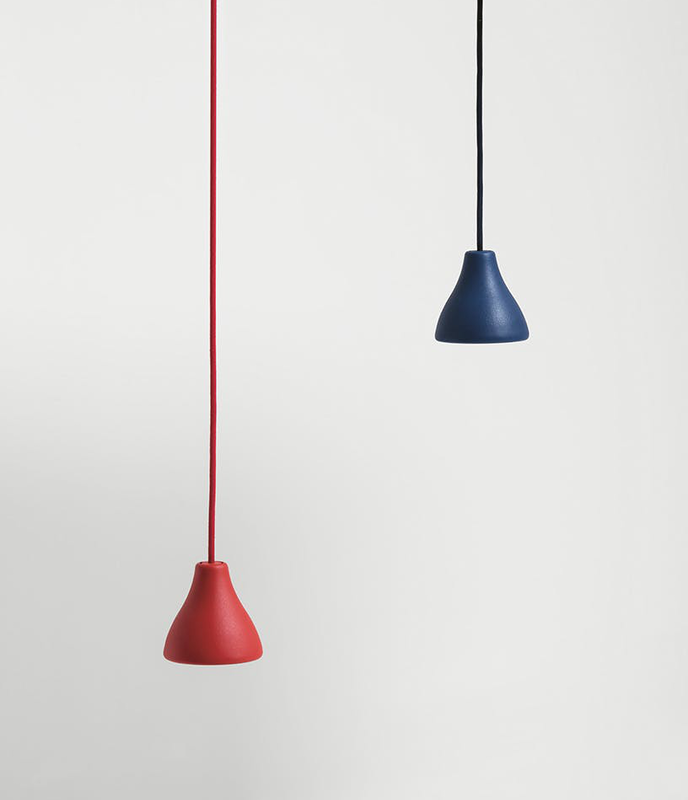

  • Anywhere, any space
  • Track compatible

Bell's gently rounded shade is made of solid, die-cast aluminium – adding a certain authenticity, weight, and stability seldom found in small pendant lamps.

Discover

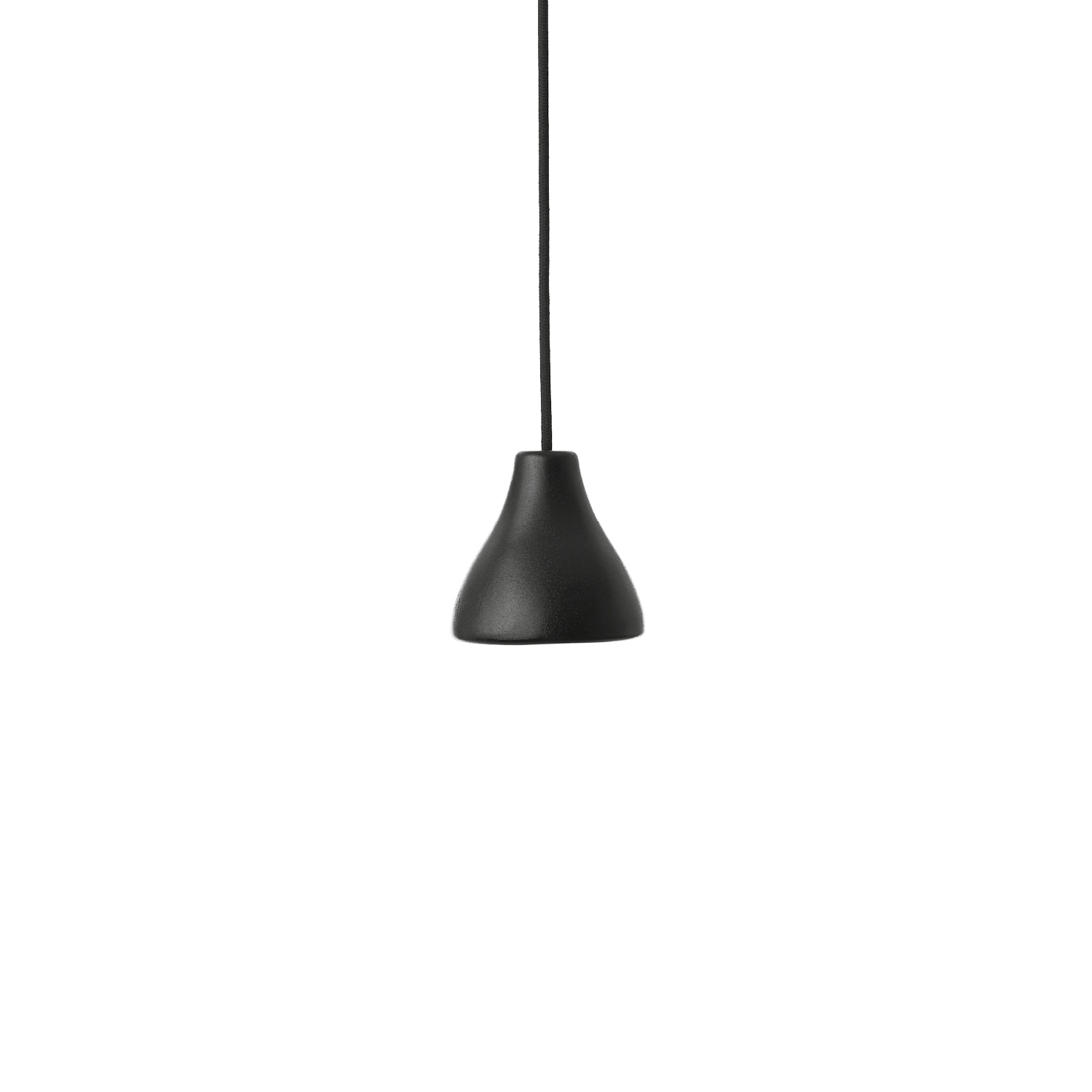

BELL SUSPENDED W131
BELL SUSPENDED W131 technical drawing
Mounting Type
Ceiling | Suspended
Material
Shade: Aluminium
IP Rating
IP20
Protection class
Class II
Colour Rendering Index
CRI 90
Light source
PAR16
Life time expectancy
L70 / 25000h
Colour Temperature
2700 K / 3000 K
Luminous flux
460 lm
Voltage
110 - 240 V
Power
6.5 W
Light control
Phase-cut dim
Net Weight
0.6 kg
Replacability Control Gear
Non-replaceable control gear
Replacability Light Source
Replaceable light source by a professional
BELL SUSPENDED W131 LDC diagram
