CAST W261 – designed by Foster + Partners Industrial Design

CEILING

W261

CAST

In a category shaped by hard lines and overtly technical expressions, Cast takes a subtler, more human approach to directional light.

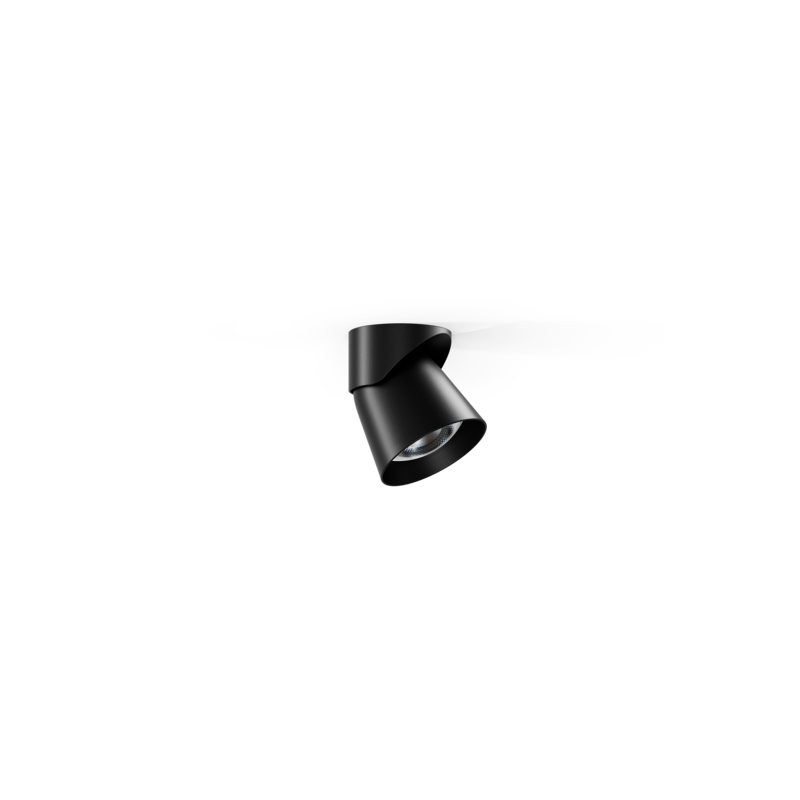

CAST

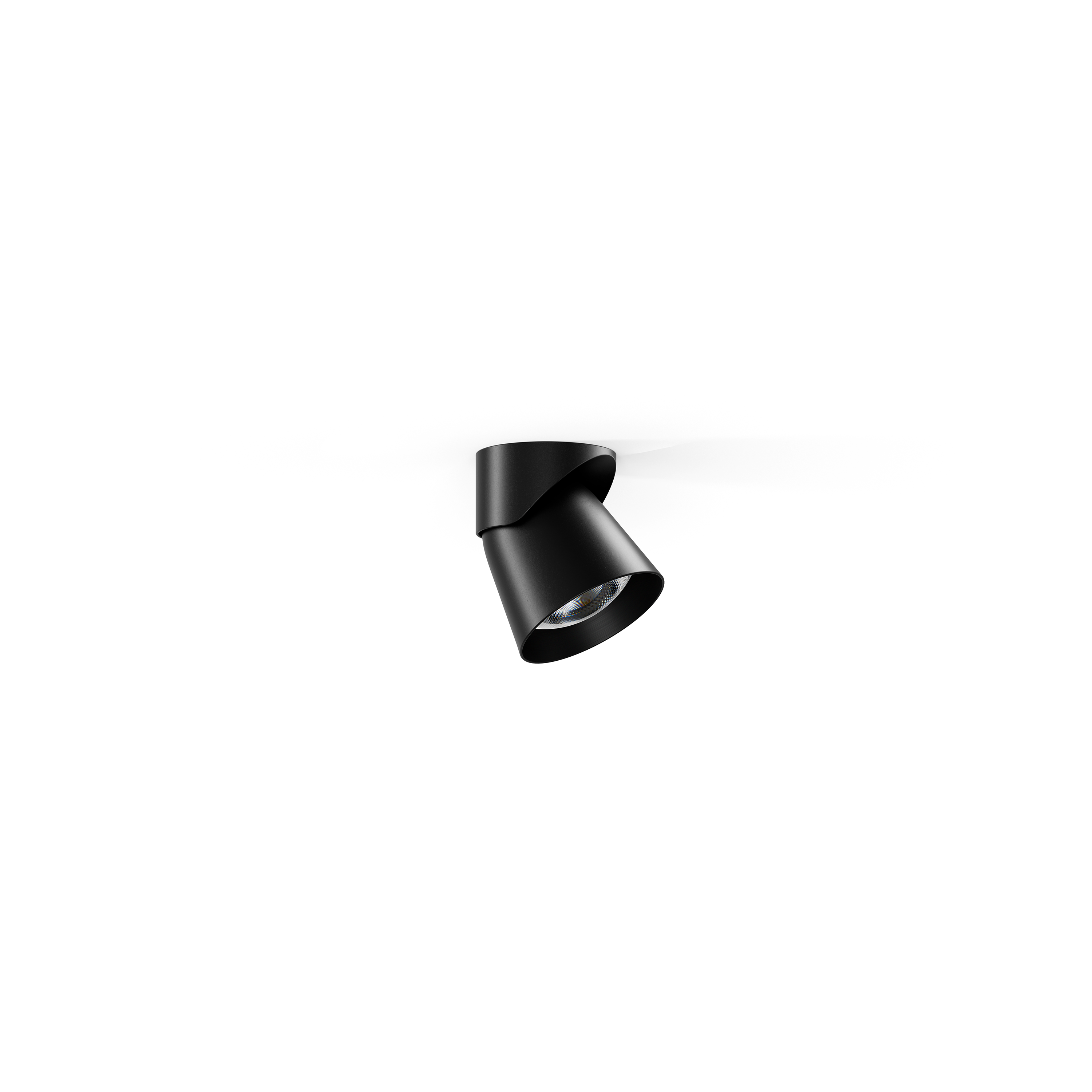

SEMI-RECESSED

W261R

CAST

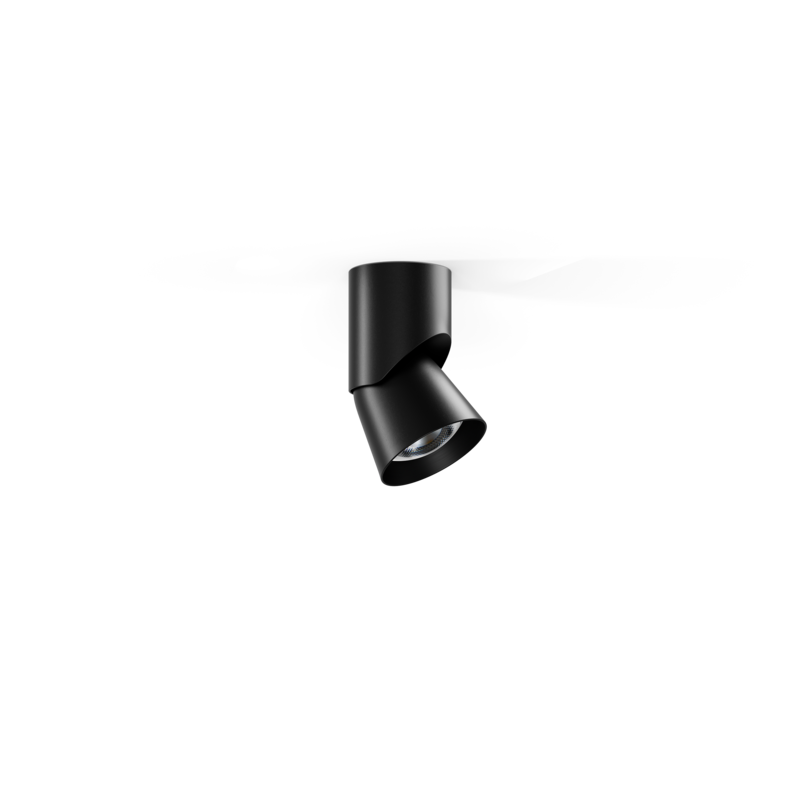

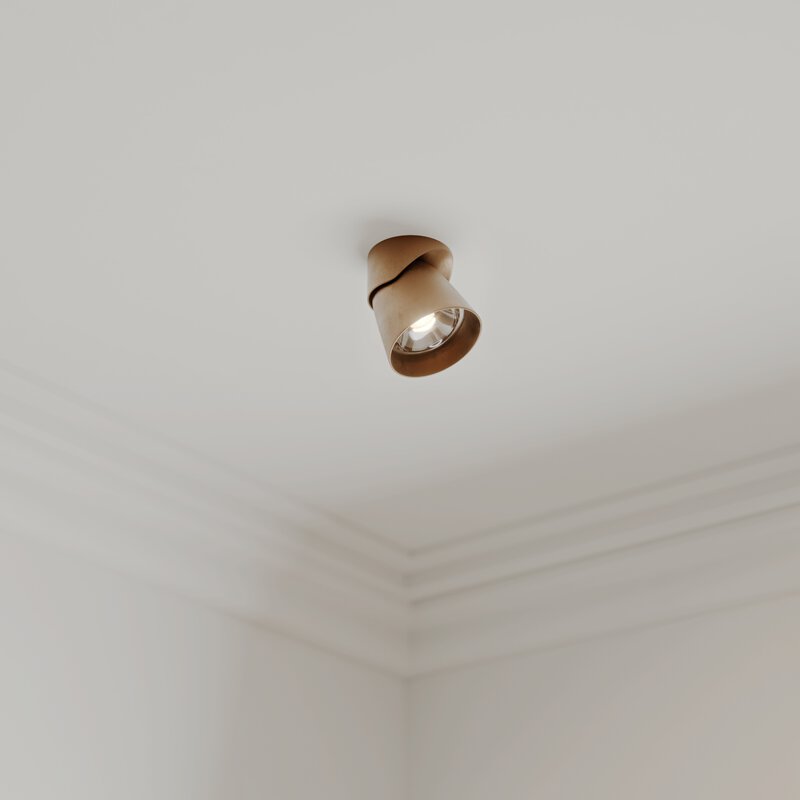

CEILING

W261C

CAST

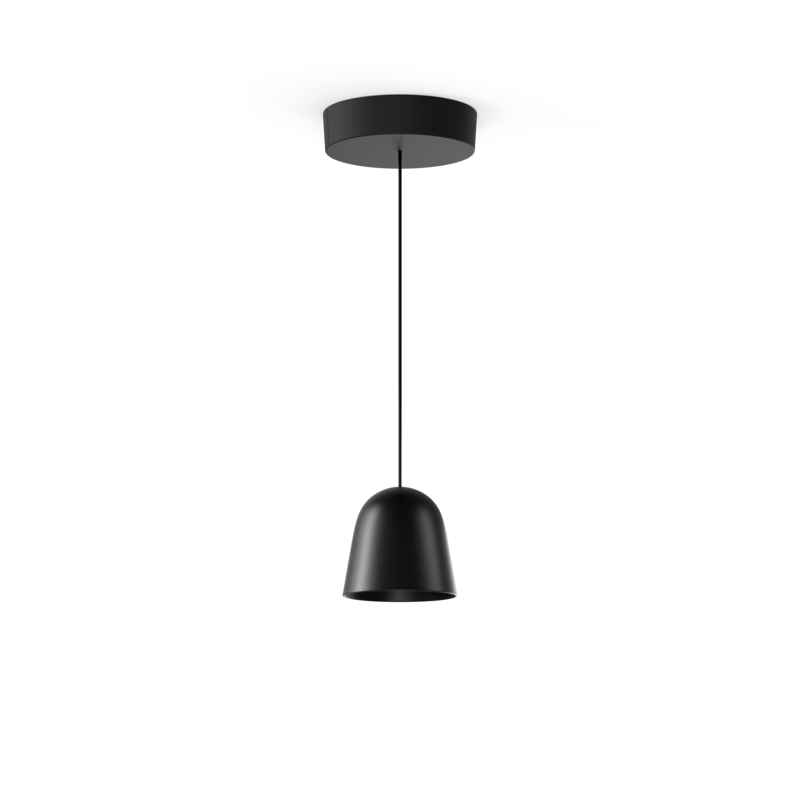

SUSPENDED

W261S

CAST

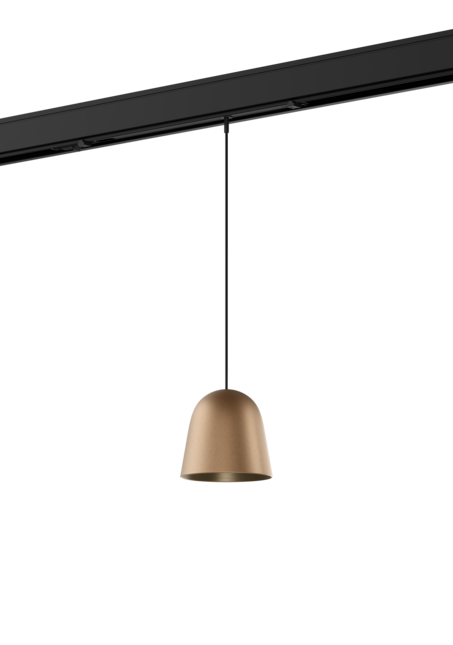

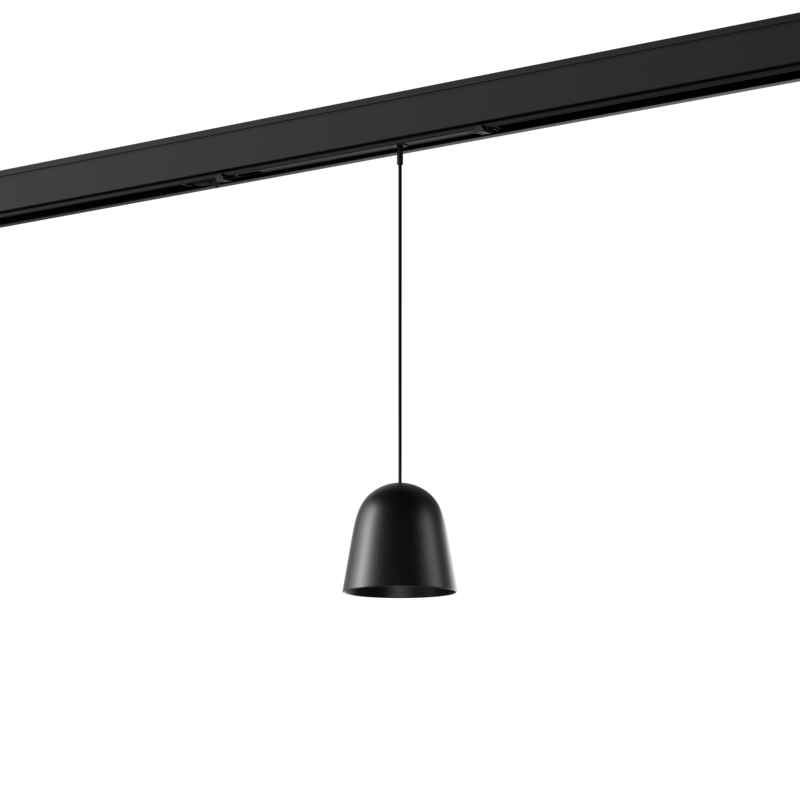

SUSPENDED TRACK

W261STR

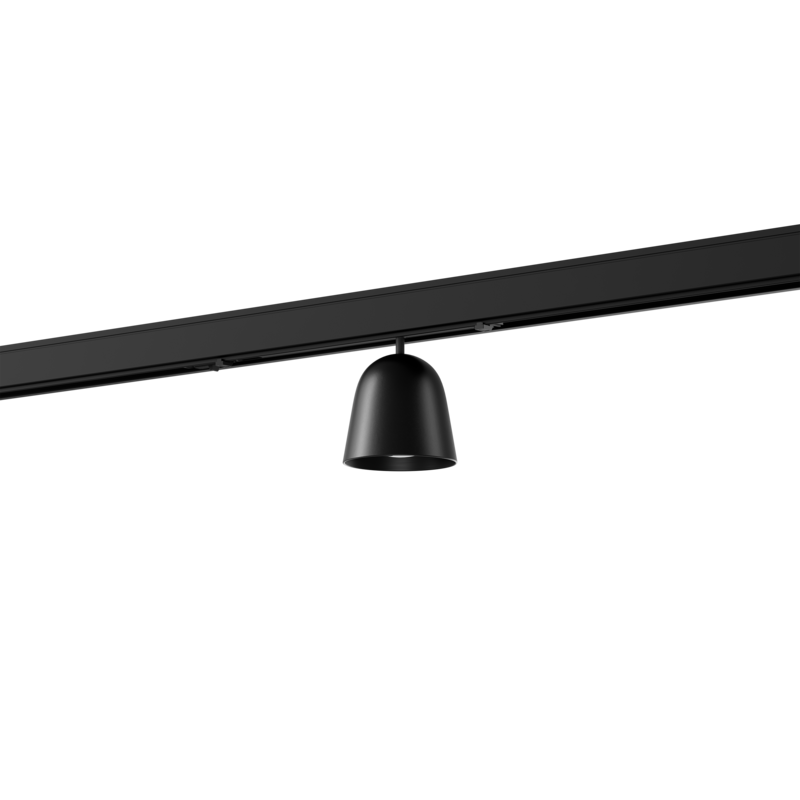

CAST

TRACK

W261TR

FEATURES

Interchangeable lens

Magnetic, interchangeable lenses allow for quick shifts between three beam angles – 15°, 36° and 56° – moving smoothly from a focused accent to a wider, more open spread. Its specially developed LED and lens system delivers high-quality light with precise distribution and reduced glare.

Discover

Mounting Type

Ceiling | Semi recessed

Material

Lamp Body: Aluminium

IP Rating

IP20

Protection class

Class II

Colour Rendering Index

CRI 90

Light source

COB LED

Life time expectancy

L80 / 50000h

Stand. deviation of colour

3 SDCM (initial MacAdam)

Colour Temperature

2700 K / 3000 K / tunable white

Luminous flux

1,140 lm / 1,150 lm / 1,190 lm / 1,240 lm / 1,290 lm

Voltage

220-240 V

Power

9.9 W

Light control

DALI Push dim / DALI TW / Phase-cut dim

Net Weight

0.6 kg

Replaceability Control Gear

Replaceable control gear by an end-user

Replaceability Light Source

Replaceable light source by a professional

2700 K

Phase-cut dim Bronze

261R1127200 / 7330492018669

Phase-cut dim Traffic white

261R1127202 / 7330492018652

Phase-cut dim Anthracite

261R1127205 / 7330492018645

Phase-cut dim Raw aluminium

261R1127220 / 7330492018676

Phase-cut dim Bronze

261R1127300 / 7330492018706

Phase-cut dim Traffic white

261R1127302 / 7330492018690

Phase-cut dim Anthracite

261R1127305 / 7330492018683

Phase-cut dim Raw aluminium

261R1127320 / 7330492018713

Phase-cut dim Bronze

261R1127400 / 7330492018744

Phase-cut dim Traffic white

261R1127402 / 7330492018737

Phase-cut dim Anthracite

261R1127405 / 7330492018720

Phase-cut dim Raw aluminium

261R1127420 / 7330492018751

DALI Push dim Bronze

261R1227200 / 7330492018904

DALI Push dim Traffic white

261R1227202 / 7330492018898

DALI Push dim Anthracite

261R1227205 / 7330492018881

DALI Push dim Raw aluminium

261R1227220 / 7330492018911

DALI Push dim Bronze

261R1227300 / 7330492018942

DALI Push dim Traffic white

261R1227302 / 7330492018935

DALI Push dim Anthracite

261R1227305 / 7330492018928

DALI Push dim Raw aluminium

261R1227320 / 7330492018959

DALI Push dim Bronze

261R1227400 / 7330492018980

DALI Push dim Traffic white

261R1227402 / 7330492018973

DALI Push dim Anthracite

261R1227405 / 7330492018966

DALI Push dim Raw aluminium

261R1227420 / 7330492018997

3000 K

Phase-cut dim Bronze

261R1130200 / 7330492018782

Phase-cut dim Traffic white

261R1130202 / 7330492018775

Phase-cut dim Anthracite

261R1130205 / 7330492018768

Phase-cut dim Raw aluminium

261R1130220 / 7330492018799

Phase-cut dim Bronze

261R1130300 / 7330492018829

Phase-cut dim Traffic white

261R1130302 / 7330492018812

Phase-cut dim Anthracite

261R1130305 / 7330492018805

Phase-cut dim Raw aluminium

261R1130320 / 7330492018836

Phase-cut dim Bronze

261R1130400 / 7330492018867

Phase-cut dim Traffic white

261R1130402 / 7330492018850

Phase-cut dim Anthracite

261R1130405 / 7330492018843

Phase-cut dim Raw aluminium

261R1130420 / 7330492018874

DALI Push dim Bronze

261R1230200 / 7330492019024

DALI Push dim Traffic white

261R1230202 / 7330492019017

DALI Push dim Anthracite

261R1230205 / 7330492019000

DALI Push dim Raw aluminium

261R1230220 / 7330492019031

DALI Push dim Bronze

261R1230300 / 7330492019062

DALI Push dim Traffic white

261R1230302 / 7330492019055

DALI Push dim Anthracite

261R1230305 / 7330492019048

DALI Push dim Raw aluminium

261R1230320 / 7330492019079

DALI Push dim Bronze

261R1230400 / 7330492019109

DALI Push dim Traffic white

261R1230402 / 7330492019093

DALI Push dim Anthracite

261R1230405 / 7330492019086

DALI Push dim Raw aluminium

261R1230420 / 7330492019116

tunable white

DALI TW Bronze

261R1290200 / 7330492019147

DALI TW Traffic white

261R1290202 / 7330492019130

DALI TW Anthracite

261R1290205 / 7330492019123

DALI TW Raw aluminium

261R1290220 / 7330492019154

DALI TW Bronze

261R1290300 / 7330492019185

DALI TW Traffic white

261R1290302 / 7330492019178

DALI TW Anthracite

261R1290305 / 7330492019161

DALI TW Raw aluminium

261R1290320 / 7330492019192

DALI TW Bronze

261R1290400 / 7330492019222

DALI TW Traffic white

261R1290402 / 7330492019215

DALI TW Anthracite

261R1290405 / 7330492019208

DALI TW Raw aluminium

261R1290420 / 7330492019239

Mounting Type

Ceiling | Surface

Material

Lamp Body: Aluminium

IP Rating

IP20

Protection class

Class II

Colour Rendering Index

CRI 90

Light source

COB LED

Life time expectancy

L80 / 50000h

Stand. deviation of colour

3 SDCM (initial MacAdam)

Colour Temperature

2700 K / 3000 K

Luminous flux

1,140 lm / 1,150 lm / 1,190 lm / 1,240 lm / 1,290 lm

Voltage

220-240 V

Power

9.9 W

Light control

DALI Push dim / Phase-cut dim

Net Weight

0.7 kg

Replaceability Control Gear

Replaceable control gear by an end-user

Replaceability Light Source

Replaceable light source by a professional

2700 K

Phase-cut dim Bronze

261C1127200 / 7330492015798

Phase-cut dim Traffic white

261C1127202 / 7330492015804

Phase-cut dim Anthracite

261C1127205 / 7330492015811

Phase-cut dim Raw aluminium

261C1127220 / 7330492015781

Phase-cut dim Bronze

261C1127300 / 7330492015750

Phase-cut dim Traffic white

261C1127302 / 7330492015767

Phase-cut dim Anthracite

261C1127305 / 7330492015774

Phase-cut dim Raw aluminium

261C1127320 / 7330492015743

Phase-cut dim Bronze

261C1127400 / 7330492018263

Phase-cut dim Traffic white

261C1127402 / 7330492018256

Phase-cut dim Anthracite

261C1127405 / 7330492015736

Phase-cut dim Raw aluminium

261C1127420 / 7330492018270

DALI Push dim Bronze

261C1227200 / 7330492018423

DALI Push dim Traffic white

261C1227202 / 7330492018416

DALI Push dim Anthracite

261C1227205 / 7330492018409

DALI Push dim Raw aluminium

261C1227220 / 7330492018430

DALI Push dim Bronze

261C1227300 / 7330492018461

DALI Push dim Traffic white

261C1227302 / 7330492018454

DALI Push dim Anthracite

261C1227305 / 7330492018447

DALI Push dim Raw aluminium

261C1227320 / 7330492018478

DALI Push dim Bronze

261C1227400 / 7330492018508

DALI Push dim Traffic white

261C1227402 / 7330492018492

DALI Push dim Anthracite

261C1227405 / 7330492018485

DALI Push dim Raw aluminium

261C1227420 / 7330492018515

3000 K

Phase-cut dim Bronze

261C1130200 / 7330492018300

Phase-cut dim Traffic white

261C1130202 / 7330492018294

Phase-cut dim Anthracite

261C1130205 / 7330492018287

Phase-cut dim Raw aluminium

261C1130220 / 7330492018317

Phase-cut dim Bronze

261C1130300 / 7330492018348

Phase-cut dim Traffic white

261C1130302 / 7330492018331

Phase-cut dim Anthracite

261C1130305 / 7330492018324

Phase-cut dim Raw aluminium

261C1130320 / 7330492018355

Phase-cut dim Bronze

261C1130400 / 7330492018386

Phase-cut dim Traffic white

261C1130402 / 7330492018379

Phase-cut dim Anthracite

261C1130405 / 7330492018362

Phase-cut dim Raw aluminium

261C1130420 / 7330492018393

DALI Push dim Bronze

261C1230200 / 7330492018546

DALI Push dim Traffic white

261C1230202 / 7330492018539

DALI Push dim Anthracite

261C1230205 / 7330492018522

DALI Push dim Raw aluminium

261C1230220 / 7330492018553

DALI Push dim Bronze

261C1230300 / 7330492018584

DALI Push dim Traffic white

261C1230302 / 7330492018577

DALI Push dim Anthracite

261C1230305 / 7330492018560

DALI Push dim Raw aluminium

261C1230320 / 7330492018591

DALI Push dim Bronze

261C1230400 / 7330492018621

DALI Push dim Traffic white

261C1230402 / 7330492018614

DALI Push dim Anthracite

261C1230405 / 7330492018607

DALI Push dim Raw aluminium

261C1230420 / 7330492018638

Mounting Type

Ceiling | Suspended

Material

Lamp Body: Aluminium

IP Rating

IP20

Protection class

Class II

Colour Rendering Index

CRI 90

Light source

COB LED

Life time expectancy

L80 / 50000h

Stand. deviation of colour

3 SDCM (initial MacAdam)

Colour Temperature

2700 K / 3000 K

Luminous flux

1,140 lm / 1,150 lm / 1,190 lm / 1,240 lm / 1,290 lm

Voltage

220-240 V

Power

9.9 W

Light control

DALI Push dim / Phase-cut dim

Net Weight

0.5 kg

Replaceability Control Gear

Replaceable control gear by an end-user

Replaceability Light Source

Replaceable light source by a professional

2700 K

Phase-cut dim Bronze

261S1127200 / 7330492019505

Phase-cut dim Traffic white

261S1127202 / 7330492019499

Phase-cut dim Anthracite

261S1127205 / 7330492019482

Phase-cut dim Raw aluminium

261S1127220 / 7330492019512

Phase-cut dim Bronze

261S1127300 / 7330492019543

Phase-cut dim Traffic white

261S1127302 / 7330492019536

Phase-cut dim Anthracite

261S1127305 / 7330492019529

Phase-cut dim Traffic white

261S1127402 / 7330492019574

Phase-cut dim Anthracite

261S1127405 / 7330492019567

Phase-cut dim Raw aluminium

261S1127420 / 7330492019598

DALI Push dim Bronze

261S1227200 / 7330492019741

DALI Push dim Traffic white

261S1227202 / 7330492019734

DALI Push dim Anthracite

261S1227205 / 7330492019727

DALI Push dim Raw aluminium

261S1227220 / 7330492019758

DALI Push dim Bronze

261S1227300 / 7330492019789

DALI Push dim Traffic white

261S1227302 / 7330492019772

DALI Push dim Anthracite

261S1227305 / 7330492019765

DALI Push dim Raw aluminium

261S1227320 / 7330492019796

DALI Push dim Bronze

261S1227400 / 7330492019826

DALI Push dim Traffic white

261S1227402 / 7330492019819

DALI Push dim Anthracite

261S1227405 / 7330492019802

DALI Push dim Raw aluminium

261S1227420 / 7330492019833

3000 K

Phase-cut dim Bronze

261S1130200 / 7330492019628

Phase-cut dim Traffic white

261S1130202 / 7330492019611

Phase-cut dim Anthracite

261S1130205 / 7330492019604

Phase-cut dim Raw aluminium

261S1130220 / 7330492019635

Phase-cut dim Bronze

261S1130300 / 7330492019666

Phase-cut dim Traffic white

261S1130302 / 7330492019659

Phase-cut dim Anthracite

261S1130305 / 7330492019642

Phase-cut dim Raw aluminium

261S1130320 / 7330492019673

Phase-cut dim Bronze

261S1130400 / 7330492019703

Phase-cut dim Traffic white

261S1130402 / 7330492019697

Phase-cut dim Anthracite

261S1130405 / 7330492019680

Phase-cut dim Raw aluminium

261S1130420 / 7330492019710

DALI Push dim Bronze

261S1230200 / 7330492019864

DALI Push dim Traffic white

261S1230202 / 7330492019857

DALI Push dim Anthracite

261S1230205 / 7330492019840

DALI Push dim Raw aluminium

261S1230220 / 7330492019871

DALI Push dim Bronze

261S1230300 / 7330492019901

DALI Push dim Traffic white

261S1230302 / 7330492019895

DALI Push dim Anthracite

261S1230305 / 7330492019888

DALI Push dim Raw aluminium

261S1230320 / 7330492019918

DALI Push dim Bronze

261S1230400 / 7330492019949

DALI Push dim Traffic white

261S1230402 / 7330492019932

DALI Push dim Anthracite

261S1230405 / 7330492019925

DALI Push dim Raw aluminium

261S1230420 / 7330492019956

Mounting Type

Ceiling | Track Suspended

Material

Lamp Body: Aluminium

IP Rating

IP20

Protection class

Class II

Colour Rendering Index

CRI 90

Light source

COB LED

Life time expectancy

L80 / 50000h

Stand. deviation of colour

3 SDCM (initial MacAdam)

Colour Temperature

2700 K / 3000 K

Luminous flux

1,140 lm / 1,150 lm / 1,190 lm / 1,240 lm / 1,290 lm

Voltage

220-240 V

Power

9.9 W

Light control

DALI Push dim

Net Weight

0.6 kg

Replaceability Control Gear

Replaceable control gear by an end-user

Replaceability Light Source

Replaceable light source by a professional

2700 K

DALI Push dim Bronze

261STR1227200 / 7330492019987

DALI Push dim Traffic white

261STR1227202 / 7330492019970

DALI Push dim Anthracite

261STR1227205 / 7330492019963

DALI Push dim Raw aluminium

261STR1227220 / 7330492019994

DALI Push dim Bronze

261STR1227300 / 7330492020020

DALI Push dim Traffic white

261STR1227302 / 7330492020013

DALI Push dim Anthracite

261STR1227305 / 7330492020006

DALI Push dim Raw aluminium

261STR1227320 / 7330492020037

DALI Push dim Bronze

261STR1227400 / 7330492020068

DALI Push dim Traffic white

261STR1227402 / 7330492020051

DALI Push dim Anthracite

261STR1227405 / 7330492020044

DALI Push dim Raw aluminium

261STR1227420 / 7330492020075

3000 K

DALI Push dim Bronze

261STR1230200 / 7330492020105

DALI Push dim Traffic white

261STR1230202 / 7330492020099

DALI Push dim Anthracite

261STR1230205 / 7330492020082

DALI Push dim Raw aluminium

261STR1230220 / 7330492020112

DALI Push dim Bronze

261STR1230300 / 7330492020143

DALI Push dim Traffic white

261STR1230302 / 7330492020136

DALI Push dim Anthracite

261STR1230305 / 7330492020129

DALI Push dim Raw aluminium

261STR1230320 / 7330492020150

DALI Push dim Bronze

261STR1230400 / 7330492020181

DALI Push dim Traffic white

261STR1230402 / 7330492020174

DALI Push dim Anthracite

261STR1230405 / 7330492020167

DALI Push dim Raw aluminium

261STR1230420 / 7330492020198

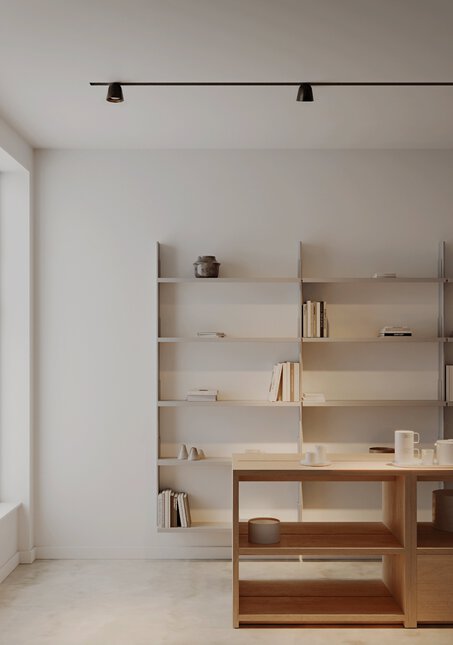

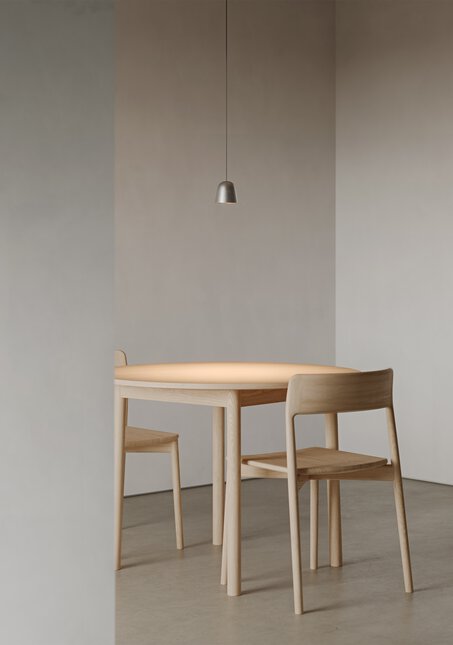

Mounting Type

Ceiling | Track Suspended

Material

Lamp Body: Aluminium

IP Rating

IP20

Protection class

Class II

Colour Rendering Index

CRI 90

Light source

COB LED

Life time expectancy

L80 / 50000h

Stand. deviation of colour

3 SDCM (initial MacAdam)

Colour Temperature

2700 K / 3000 K

Luminous flux

1,140 lm / 1,150 lm / 1,190 lm / 1,240 lm / 1,290 lm

Voltage

220-240 V

Power

9.9 W

Light control

DALI Push dim

Net Weight

0.5 kg

Replaceability Control Gear

Replaceable control gear by an end-user

Replaceability Light Source

Replaceable light source by a professional

2700 K

DALI Push dim Bronze

261TR1227200 / 7330492019260

DALI Push dim Traffic white

261TR1227202 / 7330492019253

DALI Push dim Anthracite

261TR1227205 / 7330492019246

DALI Push dim Raw aluminium

261TR1227220 / 7330492019277

DALI Push dim Bronze

261TR1227300 / 7330492019307

DALI Push dim Traffic white

261TR1227302 / 7330492019291

DALI Push dim Anthracite

261TR1227305 / 7330492019284

DALI Push dim Raw aluminium

261TR1227320 / 7330492019314

DALI Push dim Bronze

261TR1227400 / 7330492019345

DALI Push dim Traffic white

261TR1227402 / 7330492019338

DALI Push dim Anthracite

261TR1227405 / 7330492019321

DALI Push dim Raw aluminium

261TR1227420 / 7330492019352

3000 K

DALI Push dim Bronze

261TR1230200 / 7330492019383

DALI Push dim Traffic white

261TR1230202 / 7330492019376

DALI Push dim Anthracite

261TR1230205 / 7330492019369

DALI Push dim Raw aluminium

261TR1230220 / 7330492019390

DALI Push dim Bronze

261TR1230300 / 7330492019420

DALI Push dim Traffic white

261TR1230302 / 7330492019413

DALI Push dim Anthracite

261TR1230305 / 7330492019406

DALI Push dim Raw aluminium

261TR1230320 / 7330492019437

DALI Push dim Bronze

261TR1230400 / 7330492019468

DALI Push dim Traffic white

261TR1230402 / 7330492019451

DALI Push dim Anthracite

261TR1230405 / 7330492019444

DALI Push dim Raw aluminium

261TR1230420 / 7330492019475

Downloads

Datasheet

Mounting Instruction

Colour Fidelity Plot

Spectral data plot

Colour Vector Graphic

CAST

W261R

FLOOD LENS

CAST

W261R

MEDIUM LENS

CAST

W261R

NARROW LENS
