    ION

Don’t let Ion’s delicate lines deceive you – behind its almost weightless appearance lie serious engineering and high-performance light.

FEATURES

  • Professional yet personal
  • Endless possibilities

Designed to perform at a professional level, Ion also feels natural and comfortable in a home setting. Advanced LED technology and optics deliver rich, full-spectrum light with exceptional colour rendering, effective glare protection, and a choice of focused or wider beam angles.

Discover

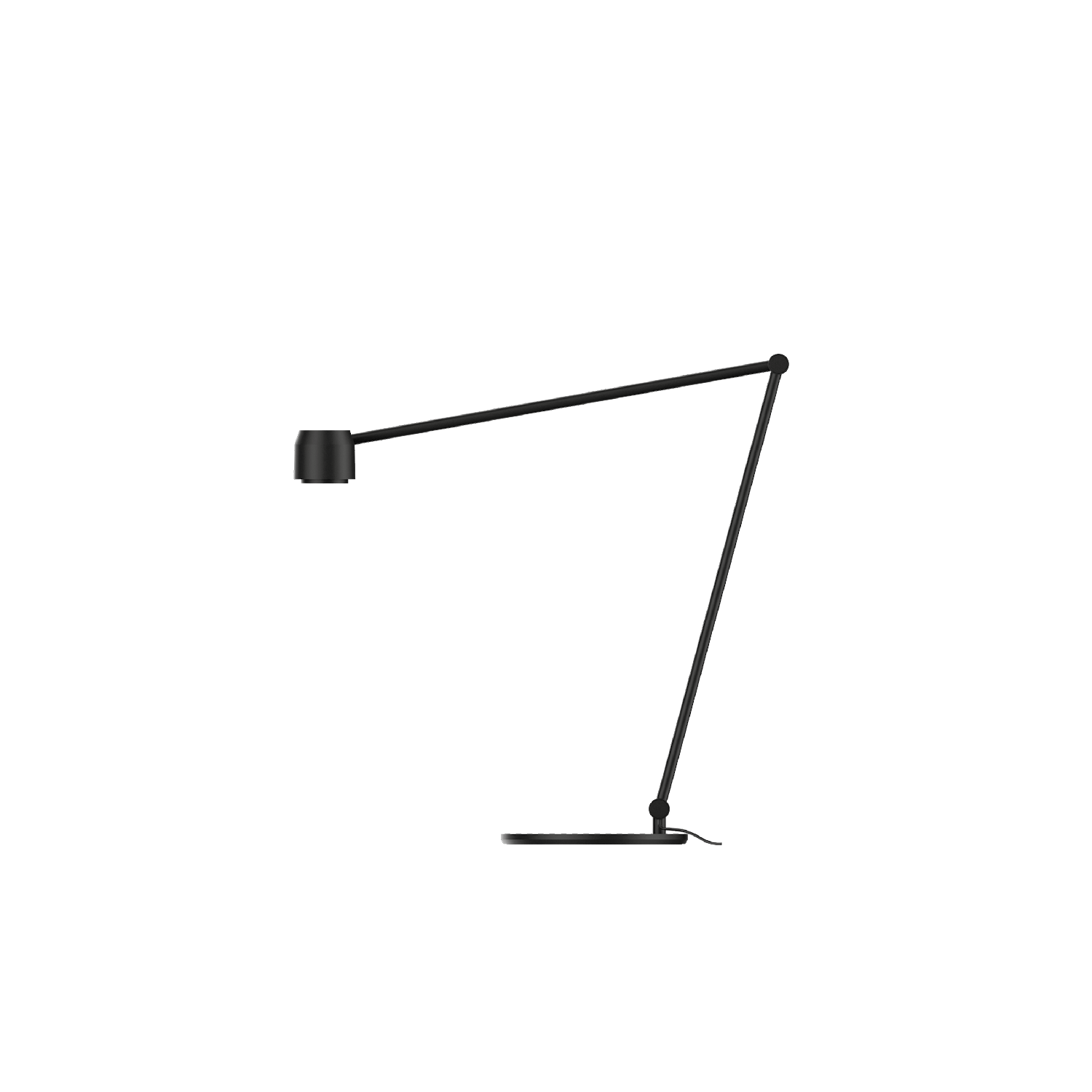

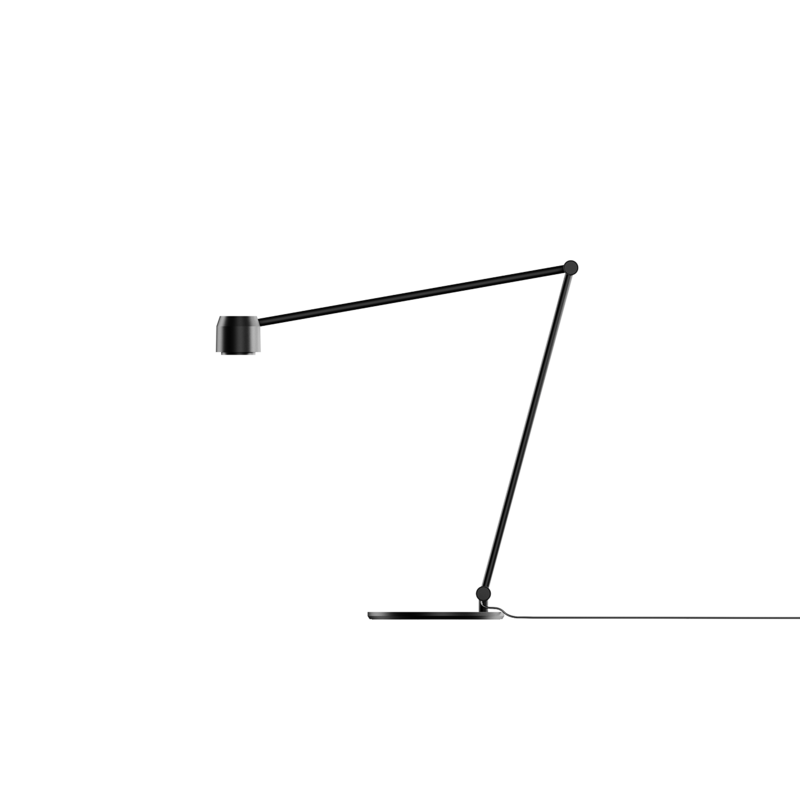

ION BASE W225B2
ION BASE W225B2 technical drawing
Mounting Type
Table | Standing
Material
Lampenkörper: Aluminium
IP Rating
IP20
Protection class
Class III
Colour Rendering Index
CRI 98
Light source
COB LED
Life time expectancy
L80 / 50000h
Stand. deviation of colour
3 SDCM (initial MacAdam)
Colour Temperature
3000 K
Luminous flux
526 lm
Voltage
100 - 240 V
Power
8.3 W
Light control
Dimmable
Net Weight
3.1 kg
Replacability Control Gear
Non-replaceable control gear
Replacability Light Source
Replaceable light source by a professional
ION BASE W225B2 LDC diagram
Downloads
Colour Fidelity Plot
Colour Vector Graphic
Light Distribution Diagrams
IES Files
LDT Files
Mounting Instruction
Spectral data plot
Specification texts
Datasheet
