• CHIPPERFIELD

    CHIPPERFIELD

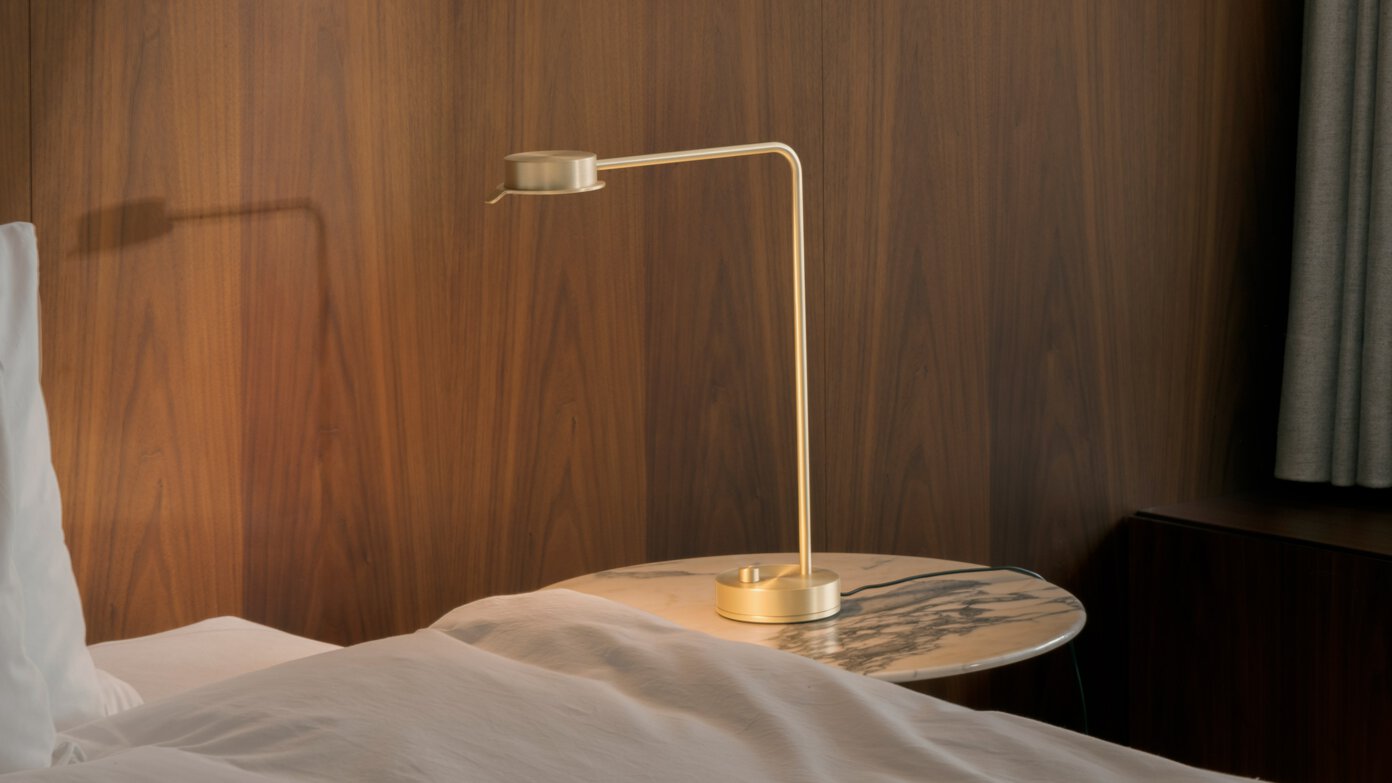

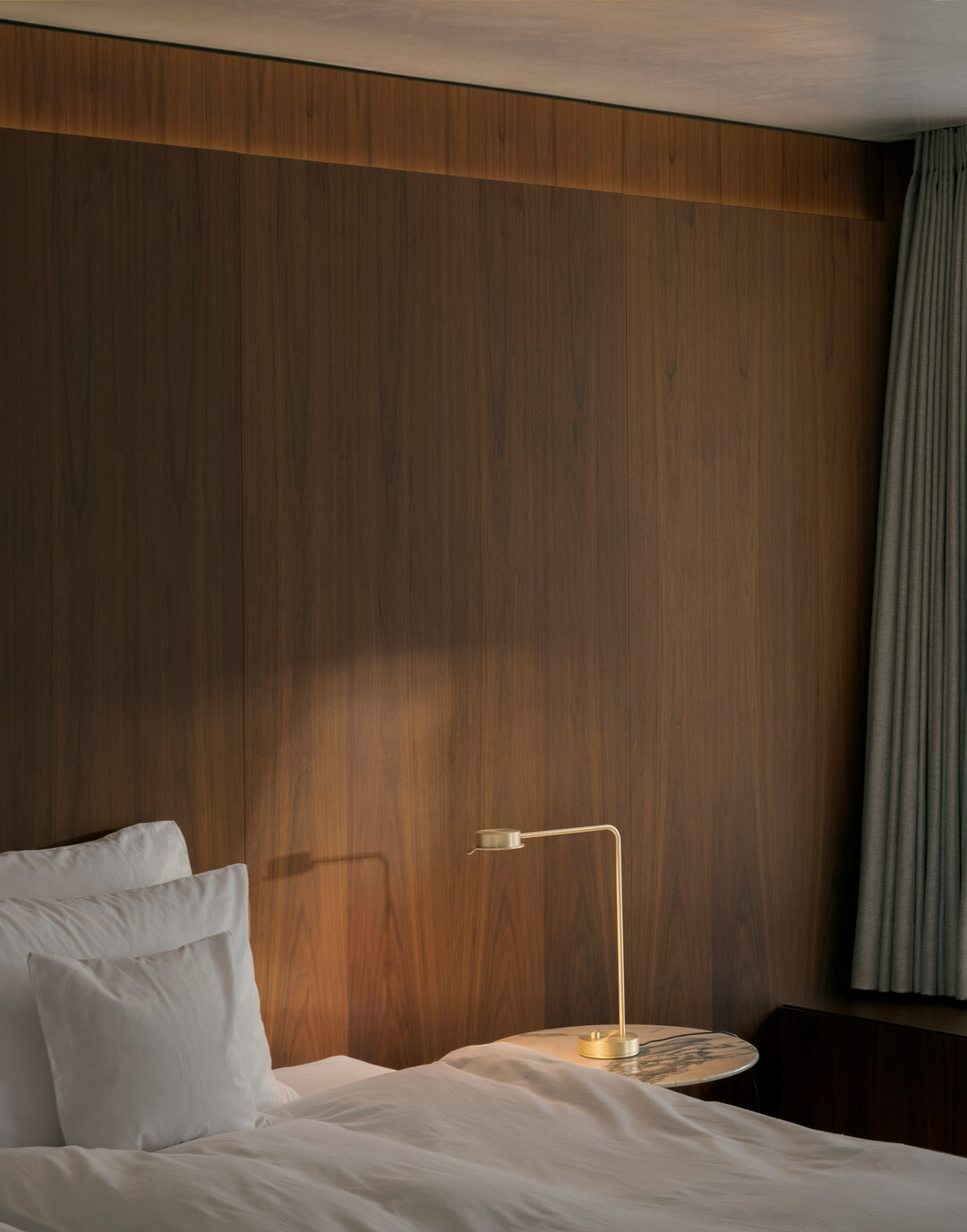

Familiar in form yet artfully refined in every detail, Chipperfield reduces the classic personal desk lamp to its absolute essentials.

FEATURES

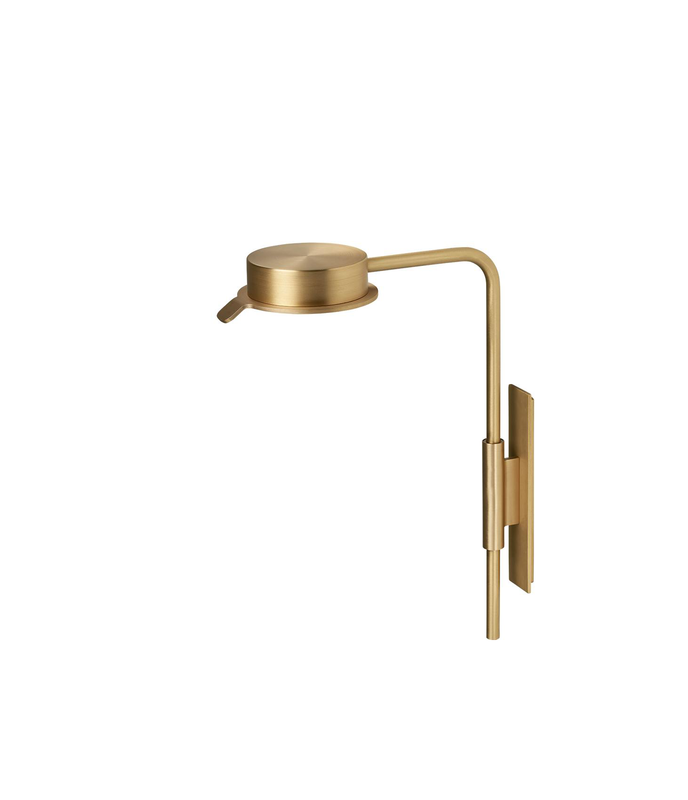

  • Classic, solid materials
  • Sophisticated mechanics
  • An extended family

Chipperfield is available in a choice of solid brass or darkened steel, each crafted with high precision and special attention to the brushed finish.

Discover

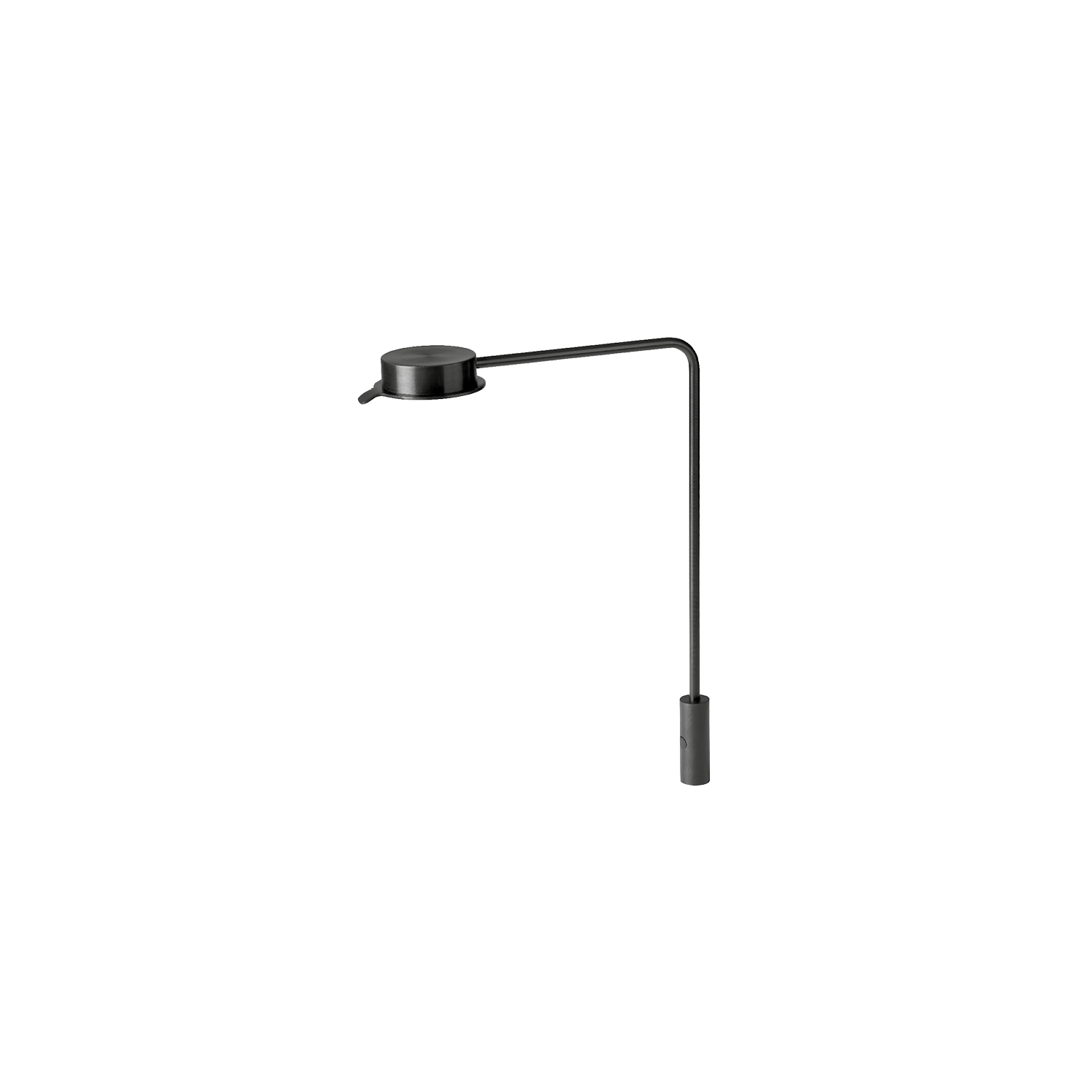

CHIPPERFIELD PIN W102P
CHIPPERFIELD PIN W102P technical drawing
Mounting Type
Table | Pinned
Material
Lampenkörper: Brass / Steel
IP Rating
IP20
Protection class
Class III
Colour Rendering Index
CRI 98
Light source
COB LED
Life time expectancy
L80 / 50000h
Stand. deviation of colour
3 SDCM (initial MacAdam)
Colour Temperature
2700 K
Luminous flux
465 lm
Voltage
100 - 240 V
Power
7.3 W
Light control
Integrated dimmer switch
Net Weight
0.9 kg
Replacability Control Gear
Non-replaceable control gear
Replacability Light Source
Replaceable light source by a professional
CHIPPERFIELD PIN W102P LDC diagram
Downloads
Colour Fidelity Plot
Colour Vector Graphic
Light Distribution Diagrams
IES Files
LDT Files
Mounting Instruction
Spectral data plot
Specification texts
Datasheet
