• PASTILLE

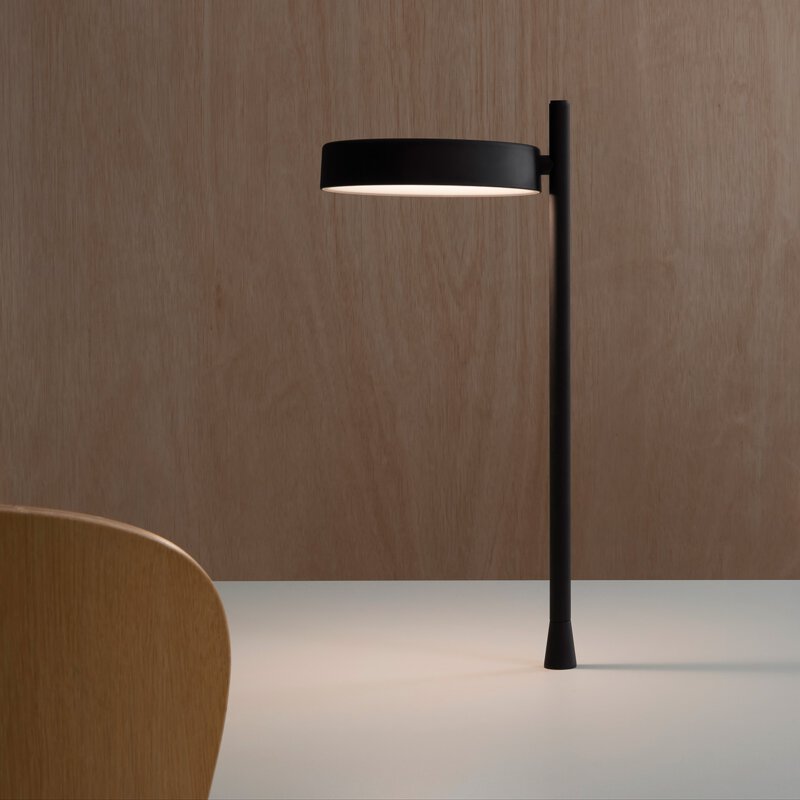

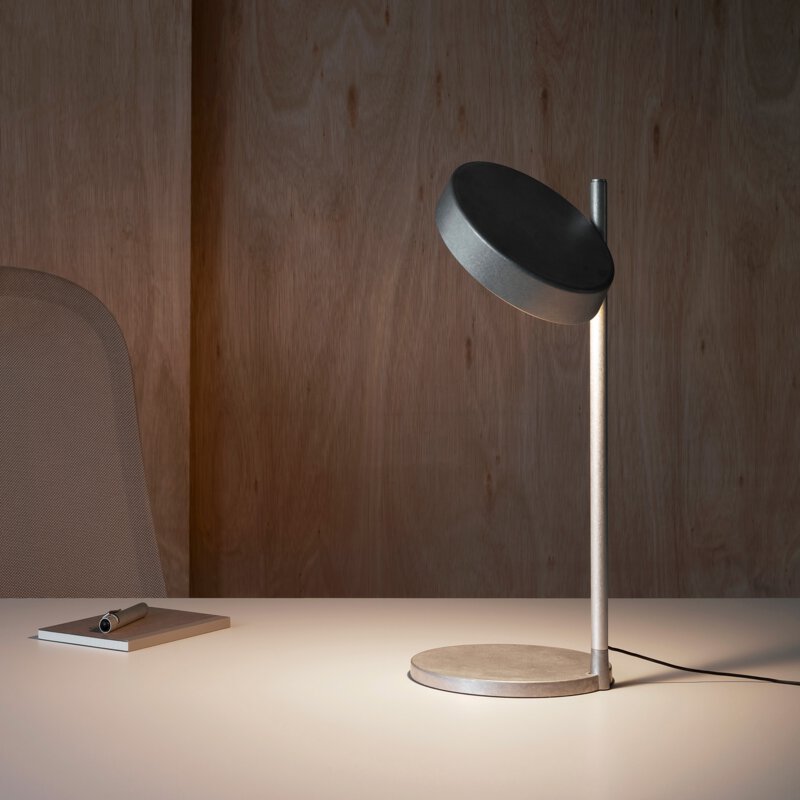

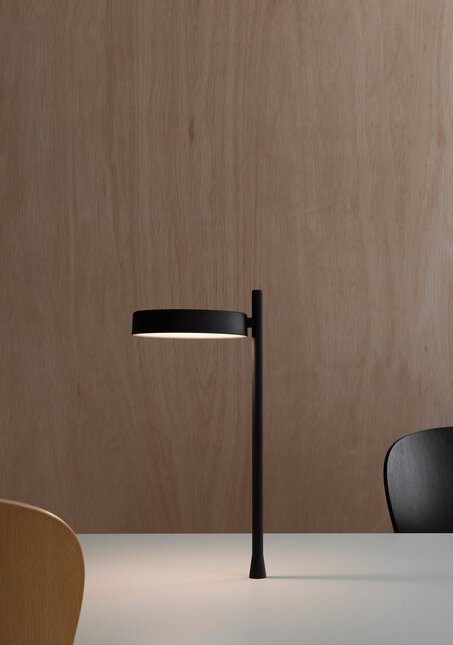

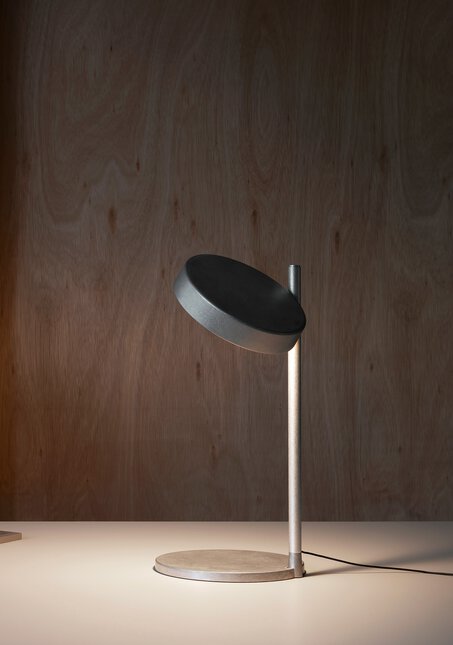

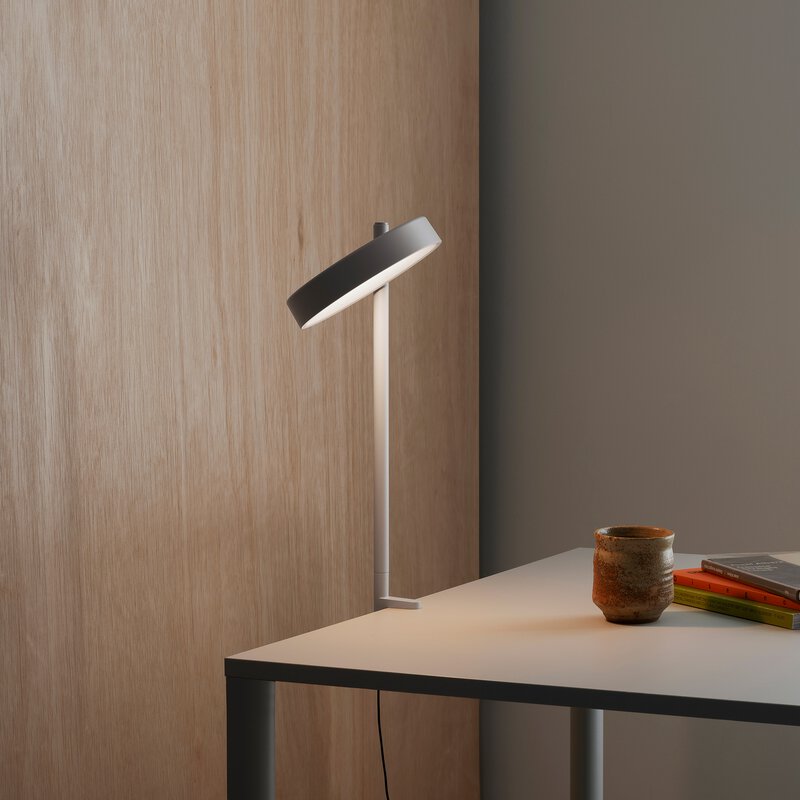

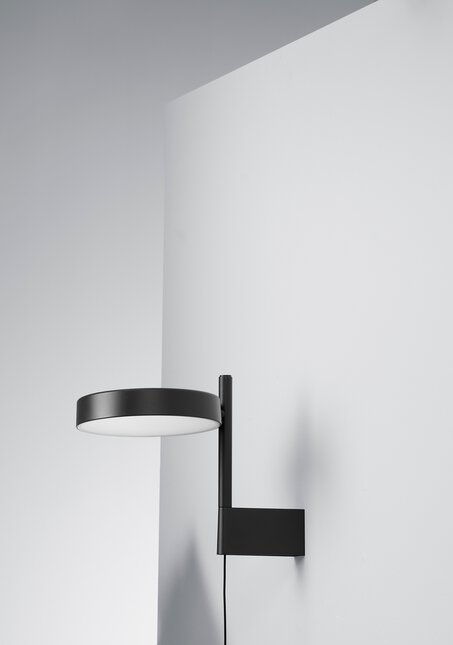

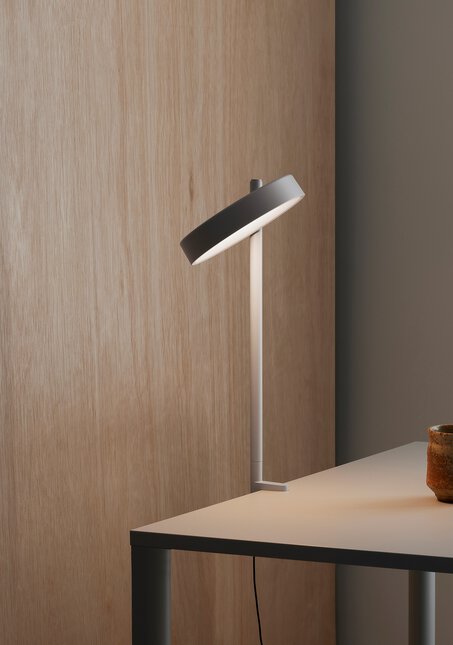

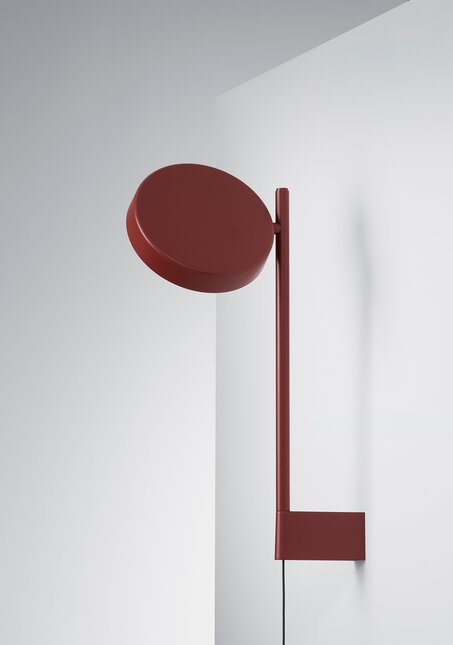

An invitation to interaction, Pastille builds on pure geometric simplicity: a luminous disc attached to a thin vertical line.

Features

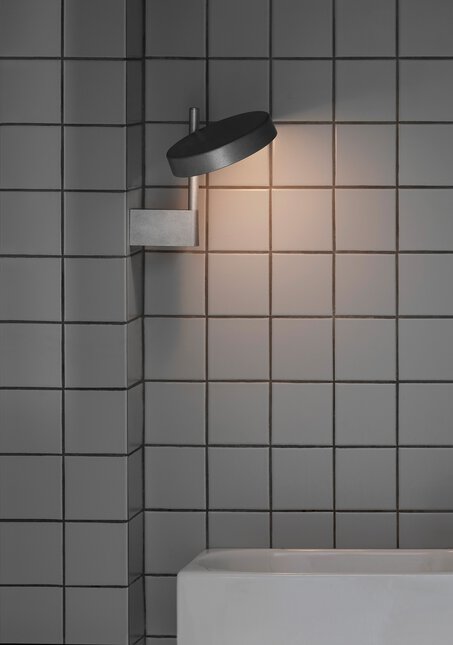

Thanks to its large reflector and wide concave diffuser, Pastille delivers a generous spread of warm, soft illumination with clear yet gentle definition.

Discover
PASTILLE BASE W242B2
PASTILLE BASE W242B2 technical drawing
Mounting Type
Table | Standing
Material
Lampenkörper: Aluminium
IP Rating
IP20
Protection class
Class III
Colour Rendering Index
CRI 98
Light source
COB LED
Life time expectancy
L80 / 50000h
Stand. deviation of colour
3 SDCM (initial MacAdam)
Colour Temperature
2700 K
Luminous flux
472 lm
Voltage
100 - 240 V
Power
7.4 W
Light control
Dimmable
Net Weight
1.7 kg
Replacability Control Gear
Non-replaceable control gear
Replacability Light Source
Replaceable light source by a professional
PASTILLE BASE W242B2 LDC diagram
Downloads
Colour Fidelity Plot
Colour Vector Graphic
Light Distribution Diagrams
IES Files
LDT Files
Mounting Instruction
Spectral data plot
Specification texts
Datasheet
