• CONE

An exploration of stark geometry and expressive scale, Cone moves playfully from subtle to supersized – always with clarity and presence.

FEATURES

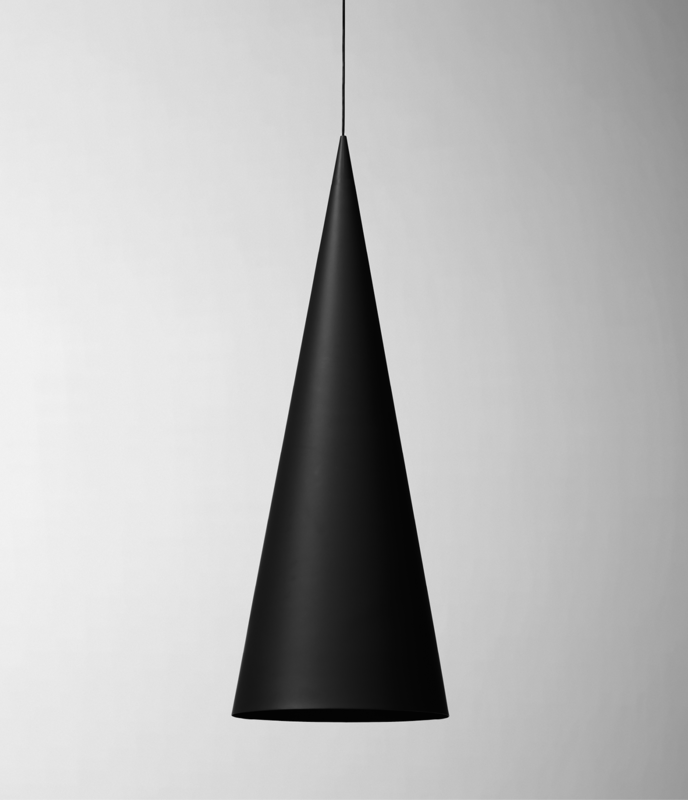

  • A shaper of space

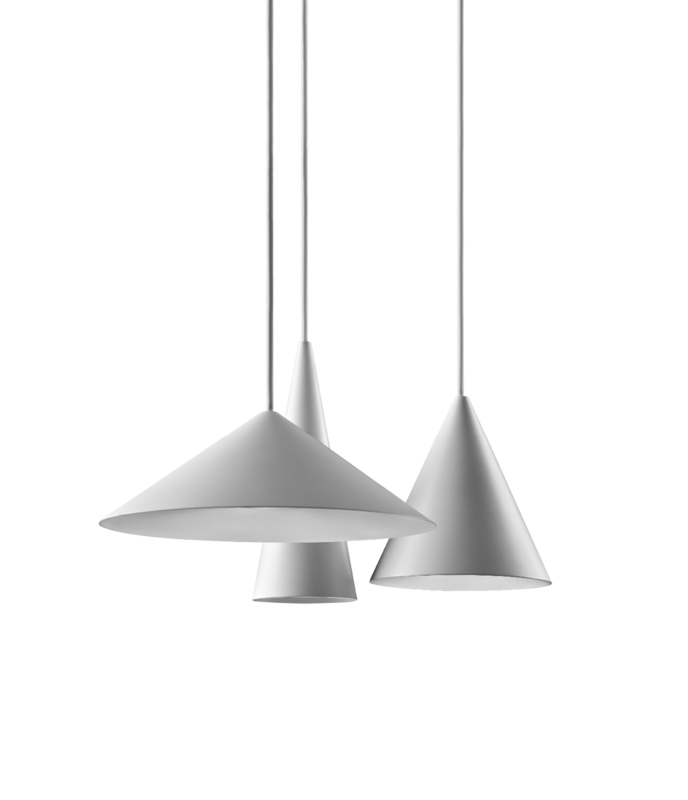

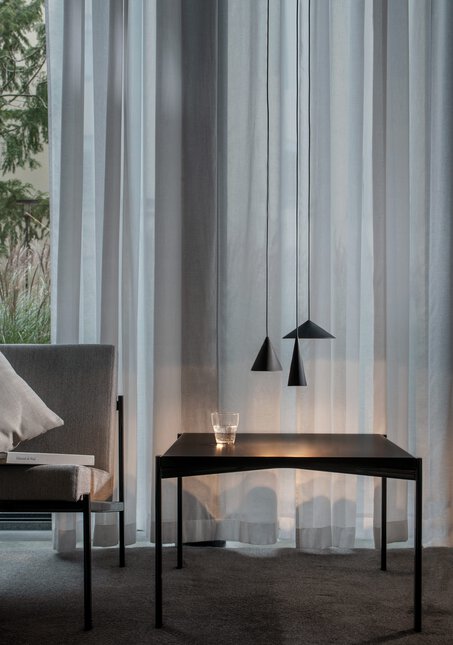

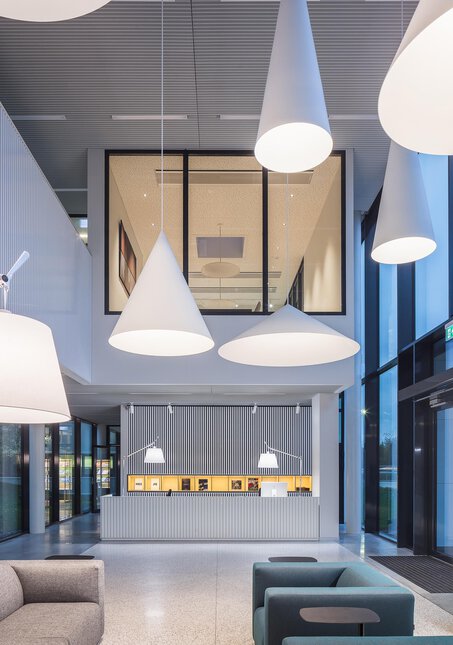

  • Solo or in constellations
  • Capable illumination

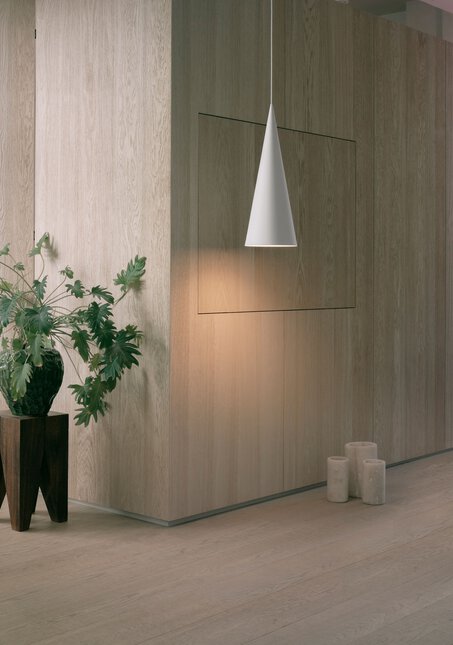

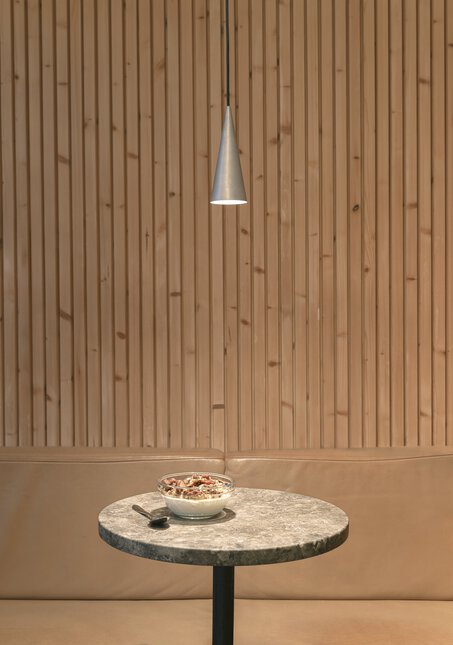

More than just a source of light, pendant lamps bring definition and physical presence to a room. Suspended from the ceiling, Cone shapes both light and atmosphere – helping to emphasise the space it inhabits with comfortable, directed illumination.

Discover

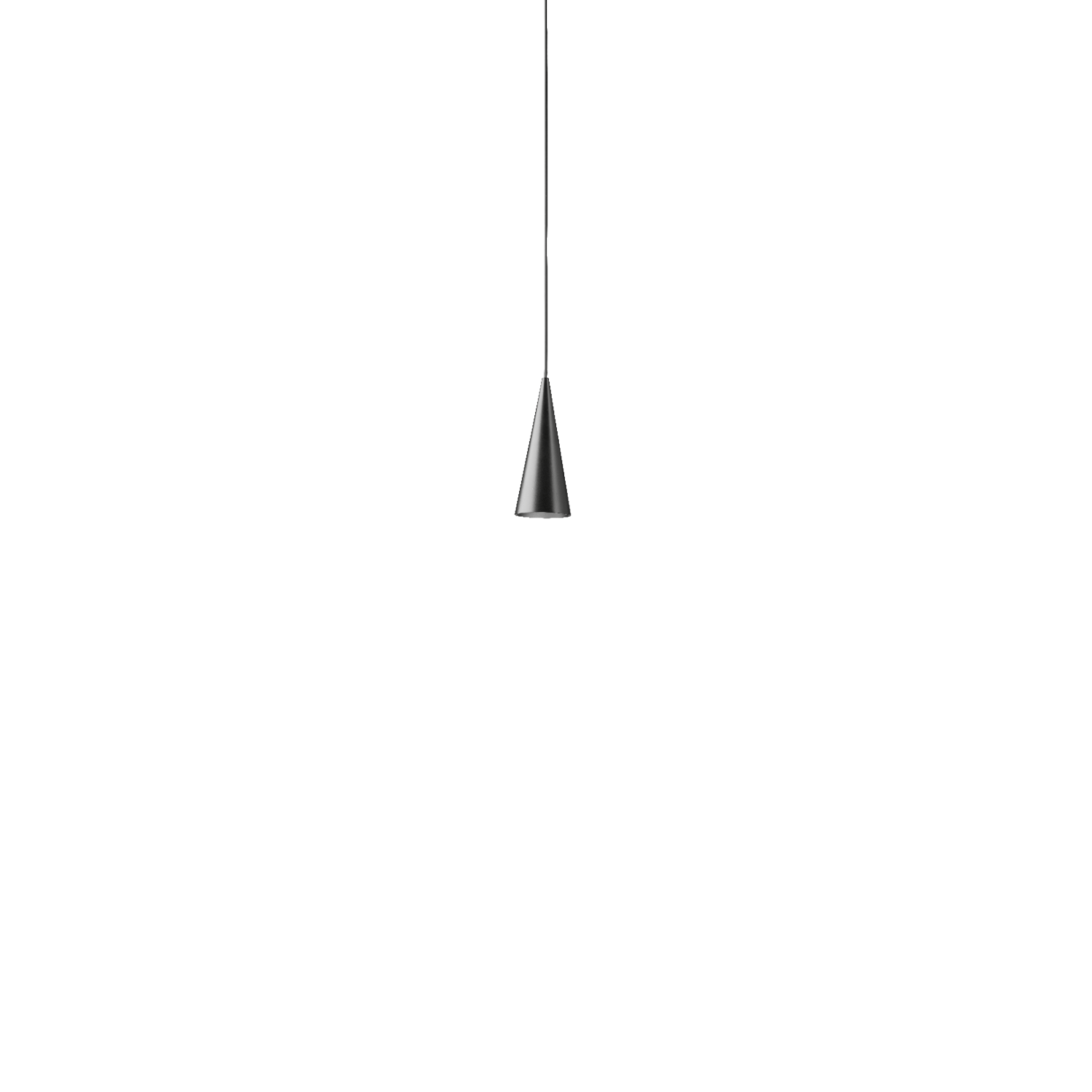

CONE SUSPENDED XS W151XS1
CONE SUSPENDED XS W151XS1 technical drawing
Mounting Type
Ceiling | Suspended
Material
Shade: Aluminium
IP Rating
IP20
Protection class
Class II
Colour Rendering Index
CRI 98
Light source
COB LED
Life time expectancy
L80 / 50000h
Stand. deviation of colour
3 SDCM (initial MacAdam)
Colour Temperature
2700 K
Luminous flux
389 lm
Voltage
220 - 240 V
Power
7.3 W
Light control
DALI Push dim / Phase-cut dim
Net Weight
0.4 kg
Replacability Control Gear
Non-replaceable control gear
Replacability Light Source
Replaceable light source by a professional
CONE SUSPENDED XS W151XS1 LDC diagram
Downloads
Colour Fidelity Plot
Colour Vector Graphic
Light Distribution Diagrams
IES Files
LDT Files
Mounting Instruction
Spectral data plot
Specification texts
Datasheet
