WINKEL

BASE

W227B

Originally designed to deliver the best possible task light, Winkel is now our flagship product – the result of years of development. This award-winner is a long-standing favourite among many architects, and with good reason. Winkel is a unity of parts, where every design choice serves a single purpose: to provide light that is nothing short of perfect. The classic desk version of Winkel features a solid round base for stable placement and a fully adjustable arm system, allowing the light to be positioned and adjusted with precision. Design: Dirk Winkel Art. No. 182B23009

Version
Pin
Lamp Body
413 EUR

incl. VAT

413 EUR

incl. VAT

Downloads
Technical specifications

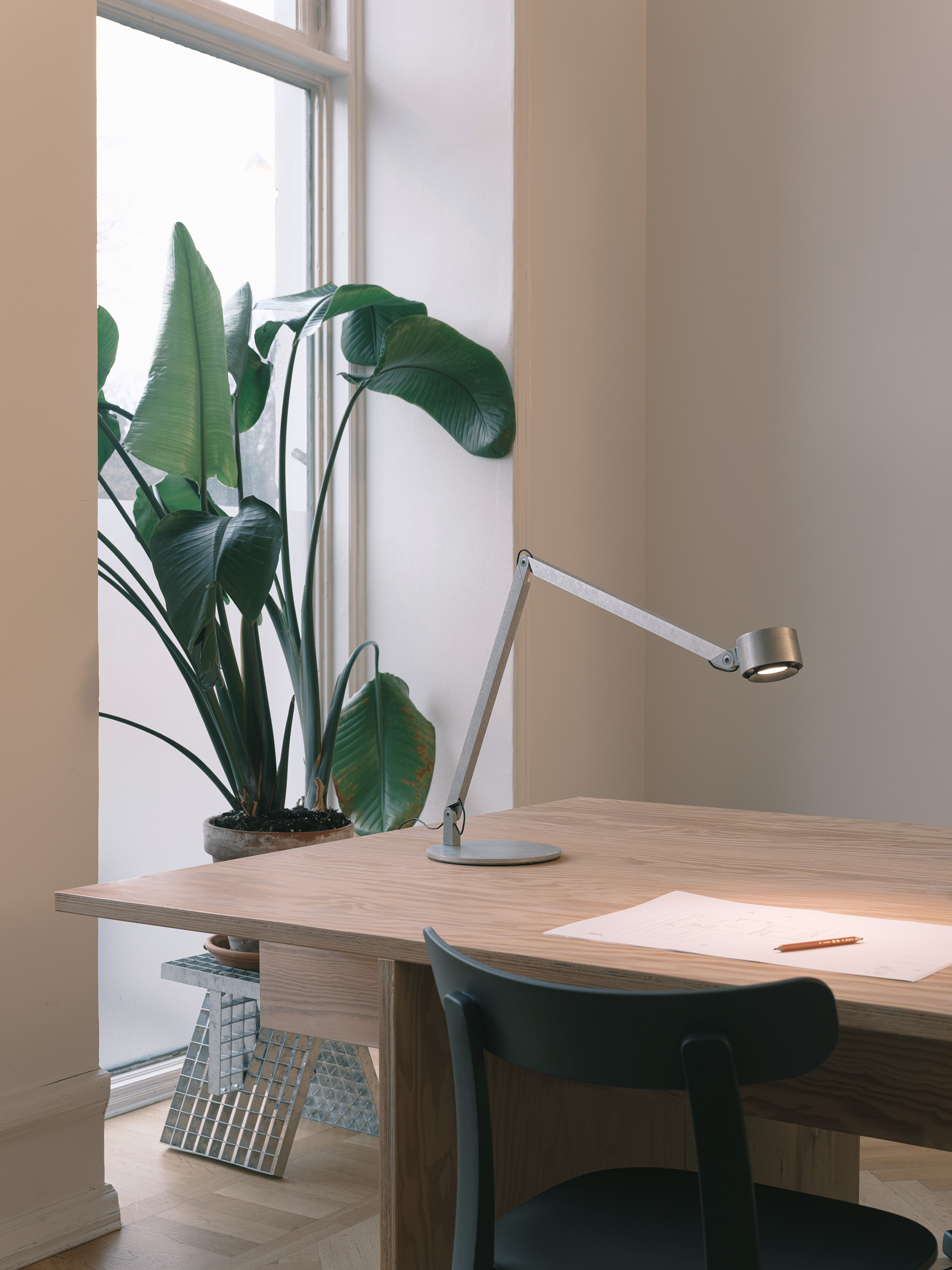

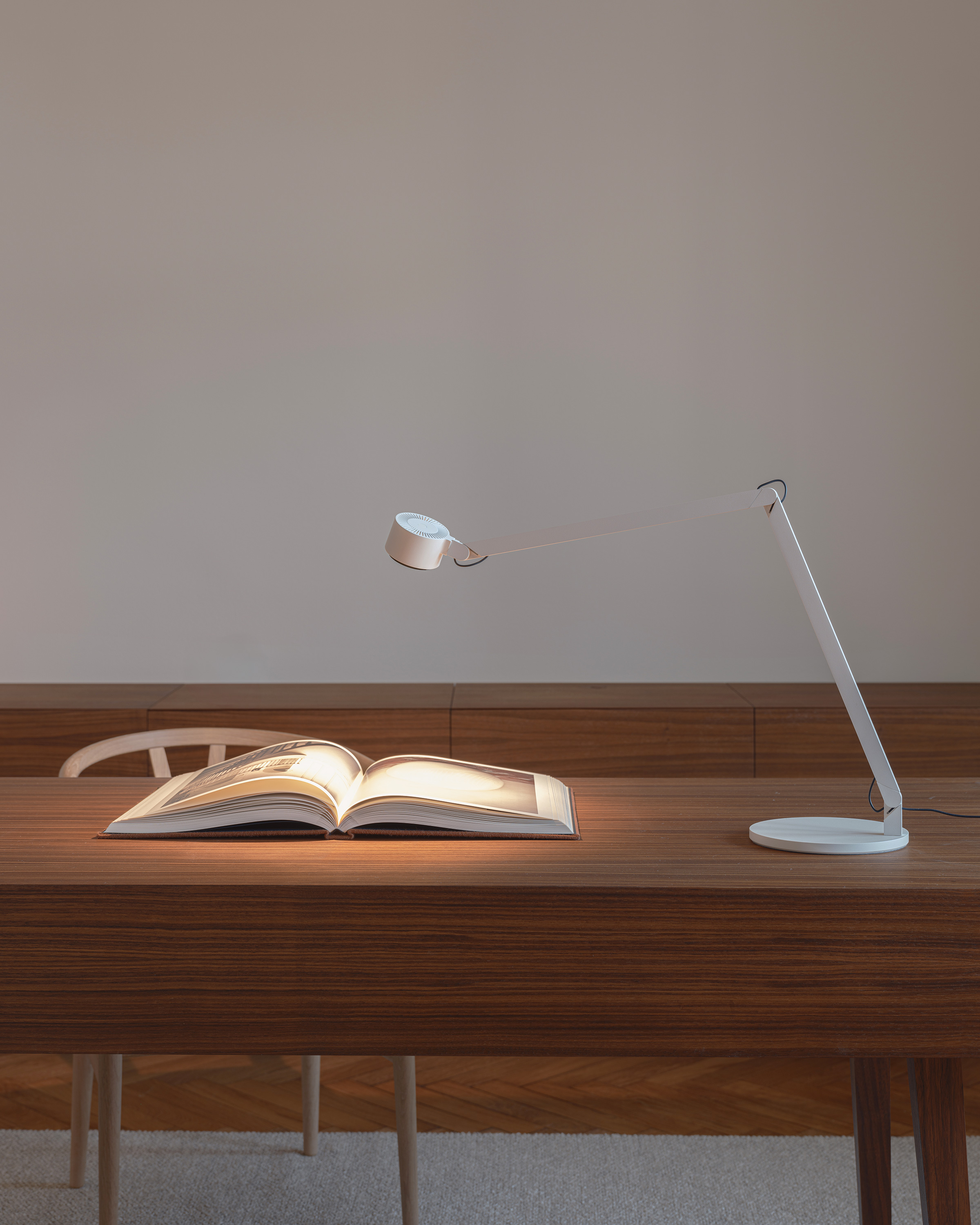

WINKEL BASE W227B product image
WINKEL BASE W227B technical drawing
Mounting Type
Table | Standing
Material
Lampenkörper: Aluminium
IP Rating
IP20
Protection class
Class III
Colour Rendering Index
CRI 98
Light source
COB LED
Life time expectancy
L85 / 50000 h
Stand. deviation of colour
3 SDCM (initial MacAdam)
Colour Temperature
3000 K
Luminous flux
517 lm
Voltage
100 - 240 V
Power
8.8 W
Light control
Integrated dimmer switch (timer 8h)
Net Weight
4 kg
Replacability Control Gear
Replaceable control gear by an end-user
Replacability Light Source
Replaceable light source by a professional
WINKEL BASE W227B LDC diagram
